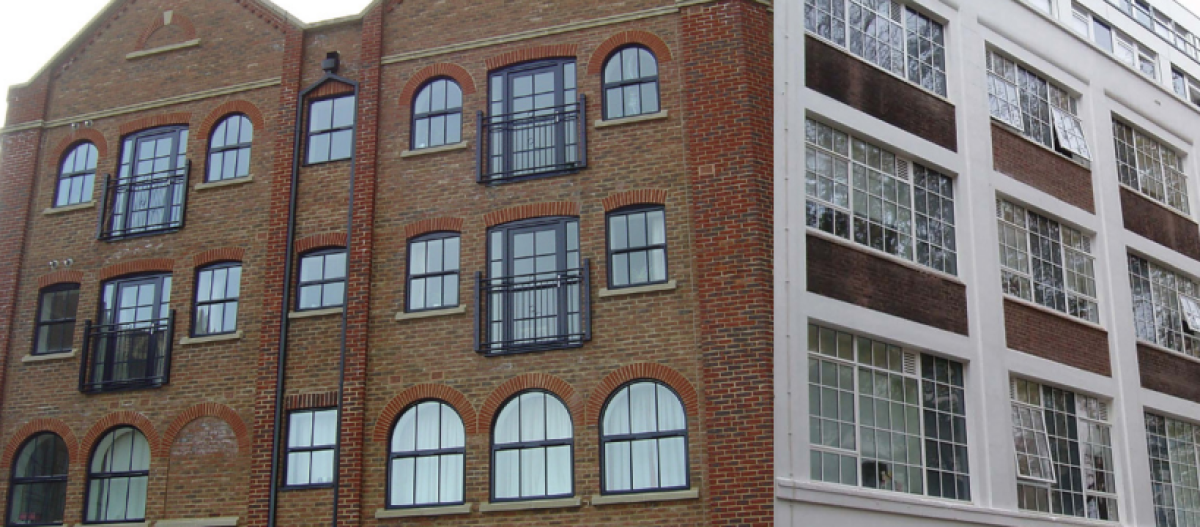

A traditional sash window that may be used in heritage and conservation areas where Georgian and Victorian architecture is predominate. The ease of operation and excellent natural ventilation rates means that VS 600 is also suited to high occupancy buildings.
The window offers a flush opening with no projection into or out of the building, this style of window is frequently used on schools and hospitals.
VS 600 hardware has been designed alongside the experts at Caldwell and utilises various standard hardware designs. As well as the vertical sliding sash, VS 600 features a ‘tilt in’ operation that facilitates the cleaning of the external glass.
The system features low line glazing gasket that will accept 28mm sealed units. The system can achieve overall U Values of 1.6W/m²K and a W.E.R. C rating. VS 600 windows also feature concealed drainage and a concealed coupling option.

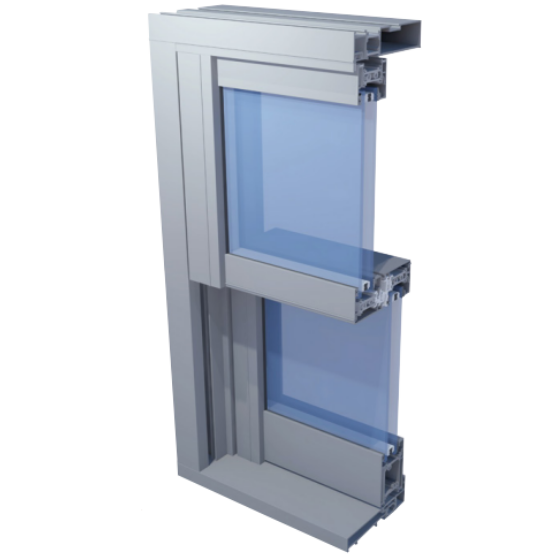

Assembly of VS 600 is optimised through square cut outer frame and sash joints which require minimal machining aiding fabrication.
NOTE: DUAL COLOUR IS NOT AVAILABLE ON VS 600
| Vertical Sliding Max Width (mm) | 1600mm (based on frame height 1300mm) |
| Vertical Sliding Max Height (mm) | 2800mm (based on frame width 750mm) |
| Vertical Sliding Max Weight (kg) | 50kg (per sash) |
| Glazing (mm) | 28mm |
| Frame Depth (mm) | 126mm |
| WER Rating | C |
| U Value | 1.6W/m²K (using correct glass unit) |
| Document L Compliant | Yes |
| BS 6375-1:2009 | Yes |
We pride ourselves on our quick lead times that we stick to unlike other suppliers, below is a summary of our standard lead-times. If the finish you require is not listed, then please contact our sales office:
